LL1Parser Class Reference

#include <ll1_parser.hpp>

Collaboration diagram for LL1Parser:

Public Member Functions
	LL1Parser ()=default
	LL1Parser (Grammar gr)
	Constructs an LL1Parser with a grammar object and an input file.
bool	CreateLL1Table ()
	Creates the LL(1) parsing table for the grammar.
void	First (std::span< const std::string > rule, std::unordered_set< std::string > &result)
	Calculates the FIRST set for a given production rule in a grammar.
void	ComputeFirstSets ()
	Computes the FIRST sets for all non-terminal symbols in the grammar.
void	ComputeFollowSets ()
	Computes the FOLLOW sets for all non-terminal symbols in the grammar.
std::unordered_set< std::string >	Follow (const std::string &arg)
	Computes the FOLLOW set for a given non-terminal symbol in the grammar.
std::unordered_set< std::string >	PredictionSymbols (const std::string &antecedent, const std::vector< std::string > &consequent)
	Computes the prediction symbols for a given production rule.

Public Attributes
ll1_table	ll1_t_
	The LL(1) parsing table, mapping non-terminals and terminals to productions.
Grammar	gr_
	Grammar object associated with this parser.
std::unordered_map< std::string, std::unordered_set< std::string > >	first_sets_
	FIRST sets for each non-terminal in the grammar.
std::unordered_map< std::string, std::unordered_set< std::string > >	follow_sets_
	FOLLOW sets for each non-terminal in the grammar.

Constructor & Destructor Documentation

LL1Parser() [1/2]

LL1Parser::LL1Parser ( )

default

LL1Parser() [2/2]

LL1Parser::LL1Parser ( Grammar gr )

explicit

Constructs an LL1Parser with a grammar object and an input file.

Parameters

gr	Grammar object to parse with

Here is the call graph for this function:

Member Function Documentation

ComputeFirstSets()

void LL1Parser::ComputeFirstSets

(

)

Computes the FIRST sets for all non-terminal symbols in the grammar.

This function calculates the FIRST set for each non-terminal symbol in the grammar by iteratively applying a least fixed-point algorithm. This approach ensures that the FIRST sets are fully populated by repeatedly expanding and updating the sets until no further changes occur (i.e., a fixed-point is reached).

Here is the call graph for this function:

Here is the caller graph for this function:

ComputeFollowSets()

void LL1Parser::ComputeFollowSets

(

)

Computes the FOLLOW sets for all non-terminal symbols in the grammar.

The FOLLOW set of a non-terminal symbol A contains all terminal symbols that can appear immediately after A in any sentential form derived from the grammar's start symbol. Additionally, if A can be the last symbol in a derivation, the end-of-input marker ($) is included in its FOLLOW set.

This function computes the FOLLOW sets using the following rules:

1. Initialize FOLLOW(S) = { $ }, where S is the start symbol.
2. For each production rule of the form A → αBβ:
   • Add FIRST(β) (excluding ε) to FOLLOW(B).
   • If ε ∈ FIRST(β), add FOLLOW(A) to FOLLOW(B).
3. Repeat step 2 until no changes occur in any FOLLOW set.

The computed FOLLOW sets are cached in the follow_sets_ member variable for later use by the parser.

Note

This function assumes that the FIRST sets for all symbols have already been computed and are available in the first_sets_ member variable.

See also

First

follow_sets_

Here is the call graph for this function:

Here is the caller graph for this function:

CreateLL1Table()

bool LL1Parser::CreateLL1Table

(

)

Creates the LL(1) parsing table for the grammar.

This function constructs the LL(1) parsing table by iterating over each production in the grammar and determining the appropriate cells for each non-terminal and director symbol (prediction symbol) combination. If the grammar is LL(1) compatible, each cell will contain at most one production, indicating no conflicts. If conflicts are found, the function will return false, signaling that the grammar is not LL(1).

• For each production rule A -> α, the function calculates the director symbols using the director_symbols function.
• It then fills the parsing table at the cell corresponding to the non-terminal A and each director symbol in the set.
• If a cell already contains a production, this indicates a conflict, meaning the grammar is not LL(1).

Returns

true if the table is created successfully, indicating the grammar is LL(1) compatible; false if any conflicts are detected, showing that the grammar does not meet LL(1) requirements.

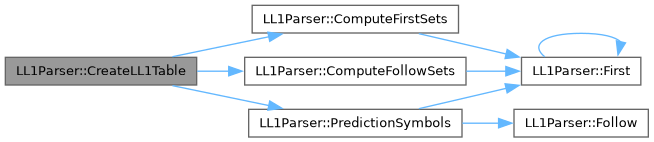

Here is the call graph for this function:

Here is the caller graph for this function:

First()

void LL1Parser::First	(	std::span< const std::string >	rule,
		std::unordered_set< std::string > &	result )

Calculates the FIRST set for a given production rule in a grammar.

The FIRST set of a production rule contains all terminal symbols that can appear at the beginning of any string derived from that rule. If the rule can derive the empty string (epsilon), epsilon is included in the FIRST set.

This function computes the FIRST set by examining each symbol in the production rule:

• If a terminal symbol is encountered, it is added directly to the FIRST set, as it is the starting symbol of some derivation.
• If a non-terminal symbol is encountered, its FIRST set is recursively computed and added to the result, excluding epsilon unless it is followed by another symbol that could also lead to epsilon.
• If the entire rule could derive epsilon (i.e., each symbol in the rule can derive epsilon), then epsilon is added to the FIRST set.

Parameters

rule	A span of strings representing the production rule for which to compute the FIRST set. Each string in the span is a symbol (either terminal or non-terminal).
result	A reference to an unordered set of strings where the computed FIRST set will be stored. The set will contain all terminal symbols that can start derivations of the rule, and possibly epsilon if the rule can derive an empty string.

Here is the call graph for this function:

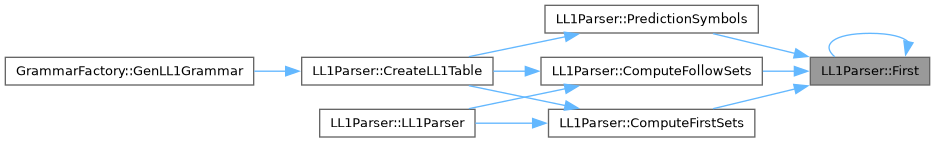

Here is the caller graph for this function:

Follow()

std::unordered_set< std::string > LL1Parser::Follow

(

const std::string &

arg

)

Computes the FOLLOW set for a given non-terminal symbol in the grammar.

The FOLLOW set for a non-terminal symbol includes all symbols that can appear immediately to the right of that symbol in any derivation, as well as any end-of-input markers if the symbol can appear at the end of derivations. FOLLOW sets are used in LL(1) parsing table construction to determine possible continuations after a non-terminal.

Parameters

arg	Non-terminal symbol for which to compute the FOLLOW set.

Returns

An unordered set of strings containing symbols that form the FOLLOW set for arg.

Here is the caller graph for this function:

PredictionSymbols()

std::unordered_set< std::string > LL1Parser::PredictionSymbols	(	const std::string &	antecedent,
		const std::vector< std::string > &	consequent )

Computes the prediction symbols for a given production rule.

The prediction symbols for a rule, determine the set of input symbols that can trigger this rule in the parsing table. This function calculates the prediction symbols based on the FIRST set of the consequent and, if epsilon (the empty symbol) is in the FIRST set, also includes the FOLLOW set of the antecedent.

• If the FIRST set of the consequent does not contain epsilon, the prediction symbols are simply the FIRST symbols of the consequent.
• If the FIRST set of the consequent contains epsilon, the prediction symbols are computed as (FIRST(consequent) - {epsilon}) ∪ FOLLOW(antecedent).

Parameters

antecedent	The left-hand side non-terminal symbol of the rule.
consequent	A vector of symbols on the right-hand side of the rule (production body).

Returns

An unordered set of strings containing the prediction symbols for the specified rule.

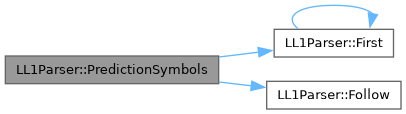

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

first_sets_

std::unordered_map<std::string, std::unordered_set<std::string> > LL1Parser::first_sets_

FIRST sets for each non-terminal in the grammar.

follow_sets_

std::unordered_map<std::string, std::unordered_set<std::string> > LL1Parser::follow_sets_

FOLLOW sets for each non-terminal in the grammar.

gr_

Grammar LL1Parser::gr_

Grammar object associated with this parser.

ll1_t_

ll1_table LL1Parser::ll1_t_

The LL(1) parsing table, mapping non-terminals and terminals to productions.

---

The documentation for this class was generated from the following files:

• backend/ll1_parser.hpp
• backend/ll1_parser.cpp
